Ok, I have here a part I've only come across once. Their magnetic and will attach themselves to metal. the top says 9143 with an arrow pointing left. Here's some pics to visually see what I'm talking about.
http://i58.tinypic.com/142uhc5.jpghttp://i59.tinypic.com/34xnn8z.jpg
Any thoughts on what they are? They came out of an AT power supply but I've yet to see anymore from other AT power supplies.
-Matt
Here's all I found in a quick search.
Basic function: The power supplies are used for the intrinsically safe operation of field devices e.g. 3- or 4-wire transmitters, solenoid valves, light barriers, controllers and more.
I'm going with the and more . Interesting
its wrapped in a shrink wrap type material right? If so there's copper in there
Some sort of Diode??
If so it's a hell of a wrap, I scrapped a bit with a flat head screwdriver and it came off as a powder so it's some sort of epoxy or polimer coating.Quote:
Originally Posted by gabrielservices
I missed something...Quote:
Originally Posted by Metalbestos
It is a copper wrapped ferrite choke, the arrow probably denotes the negative terminal. Wiki calls them inductors.
http://upload.wikimedia.org/wikipedi...i_feriteve.png
" Inductors are widely used in alternating current (AC) electronic equipment, particularly in radio equipment. They are used to block the flow of AC current while allowing DC to pass; inductors designed for this purpose are called chokes. They are also used in electronic filters to separate signals of different frequencies, and in combination with capacitors to make tuned circuits, used to tune radio and TV receivers."Quote:
A variety of types of ferrite core inductors and transformers
Inductor - Wikipedia, the free encyclopedia
Interesting Mechanic... I've had the darn things floating around in my misc bucket for a few years now and have never been able to find any info on em. Is there a way to test their rating or because their passive they work the flow?
I don't know. The numbers on top is the info you seek but you have to know how to read them. The little stuff I worked on did not have them.Quote:
Originally Posted by logansryche
The bigger ones I have pulled off the TV boards and cut the shrink off and unwrapped the copper, and the ferrite goes in your small metal bucket.
It's fine, I found a site called rcfreelance.com that pays for components so I'm going through my misc bucket and cataloging everything.
Magnetic as in permanent magnet, it sticks to the fridge or that a magnet sticks to it, because if the first it's probably a bi metal circuit breaker (thats my opinion, haven't actually put hands on one in a power supply yet)
a self-resetting circuit breaker? I don't think so, but yeah - it's base is magnetic like fridge magnet. Mechanic's answer was closest to what the thing looks like.
I'm with Mechanic, too. That's what my gut says.
Reading the title, I was hoping this was a game.
matador: "Now, I feel sad. But, I still think that's an inductor."
I was gonna play it off like snl jeopardy but...
I think you'll find that after electric flows thru it long enough then it probably magnetizes.Quote:
Originally Posted by logansryche
Ferrite is what speaker magnets are made out of. You can take a piece of ferrite and wrap a certain length of copper wire around it and hook to a battery and you've got an electrical magnet.
If that's true then these two haven't lost their magnetism yet as they stick to each other unpowered.
Let's move on to mystery part #2! I believe these are tantalum capacitors but not sure. The big one says 47-35 ++. The small ones say 225F +.
http://i57.tinypic.com/2ijkeiv.jpghttp://i61.tinypic.com/1z19ysg.jpg
Tried to get as close to them as I could without the image getting all fuzy(camera only zooms in 1x digital zoom).
I would say yes as they have the egg shape and a + marking. Most normal everyday cap's have a - marking. Tantalum Epoxy cap's.Quote:
Originally Posted by logansryche

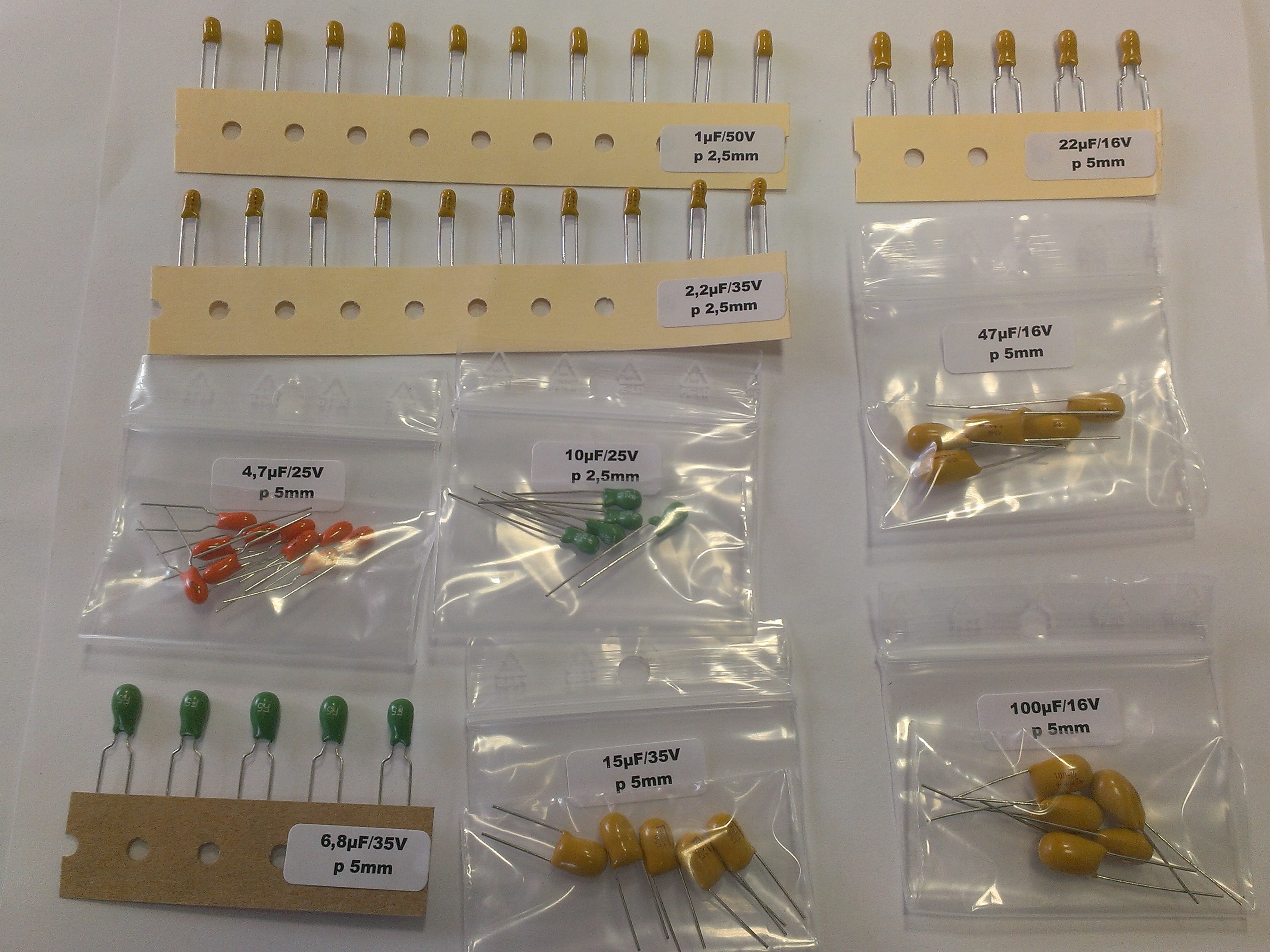

http://www.scrapmetalforum.com/attac...ors-list-2-jpg
Woot! I remembered I pulled some off a couple of automation boards I got from coilcraft when I was living in Iowa but then had to dig through my parts bin because I wasn't sure what I'd do with em lol. Now that I know that, as I sift through my bin I'll be keeping that extra eye out for em.
Do you per chance know how to read glass diodes? I have a bunch with a blue stripe on em, no numbers and most google searches were too confusing for my taste.
If your referring to the stripe being close to one end then it denotes the negative end of the diode. I don't think they put values on little glass diodes.Quote:
Originally Posted by logansryche
Ok I thought so but wasn't sure. Found some interesting components I forgot I had lol.
One of many things I'm not is a photographer, but I think you solved a photo problem for me. Too much zoom = blurry & fuzzy photo, so simple for some. Yes those look like epoxy "dipped" tantalum capacitors, I call "gum drops". Come in other colors besides "muster yellow", though yellow seem to be most common of these. Blue ones are also common, with other colors of grey, purple, red, orange and the hits keep coming.
Nice thanks - yeah, I use a Panasonic HC0V110 and it makes great video and still but if I zoom in too much on an object it becomes fuzzy/distorts the light.
